Install & Platforms

Surface Labs is a desktop, tablet and phone application.

Download

Every build except the iPad one ships from the Surface Labs itch.io page.

Windows

Download surface_lab-<version>-windows-x64.zip and unzip it anywhere. There is no installer, and nothing is written to the registry.

Run surface_lab.exe from the unzipped folder. Keep that folder intact: the executable needs flutter_windows.dll, the plugin DLLs and the data/ directory sitting beside it. The Visual C++ runtime is bundled, so you should not need to install one separately. Nothing here needs administrator rights.

Rendering goes through DirectX 12. If the 3D preview misbehaves on a particular machine, Settings → General → Graphics Backend switches the render core to Vulkan; it takes effect after a restart, and a machine with no Vulkan adapter falls back to DirectX 12 on its own. It is an escape hatch for a driver bug, not a faster path.

To uninstall, delete the folder.

macOS

Download surface_lab-<version>-macos-universal.zip, unzip it, and drag surface_lab.app into Applications.

The build is Developer ID signed and notarized, so Gatekeeper accepts it on first launch. You do not need the right-click-then-Open workaround.

The binary is universal and runs natively on both Apple Silicon and Intel.

Linux

Two packages are published. Install whichever matches your distribution:

• Debian and Ubuntu: the .deb
• Arch: the .pkg.tar.zst

Rendering goes through Vulkan on Linux, so you need a working Vulkan driver. Under WSLg this resolves to a software implementation, which runs but is slow.

Android

Download the APK matching your device architecture, arm64 or x64, and install it the same way you would any other APK.

iPad

iPad builds go out through TestFlight rather than the App Store, and the beta is open to anyone.

Install TestFlight from the App Store, then join at testflight.apple.com/join/19Q9WBRD. Builds expire on TestFlight’s usual 90-day cycle, so you will be prompted to update periodically.

Minimum requirements

Platform	Requirement
Windows	A GPU capable of Direct3D 12
macOS	10.15 Catalina or later, Apple Silicon or Intel
Linux	A working Vulkan driver
iPadOS	13.0 or later, iPad only

Surface Labs is not offered on iPhone.

iPad hardware

iPadOS 13 is the declared target, but the Metal renderer, the 3D preview and the memory budgets have only been exercised on Apple-silicon hardware. Older A-series iPads are untested. Treat an M-series iPad as the practical requirement.

Hardware notes

There is no formal minimum-spec sheet. What has actually been measured:

• 8192 x 8192 textures on an M3 iPad Air, before handhelds were capped at 4096
• On Windows with an RTX 3070, the Erosion node takes roughly 230 ms for 80 steps at 2048 x 2048

Any modern discrete or recent integrated GPU handles work at 1024 x 1024 through 2048 x 2048 comfortably. Projects at 4096 x 4096 are memory-hungry; see Resolution & Bit Depth for how the memory governor allocates.

Resolution ceiling

The authoring ladder is 256, 512, 1024, 2048, 4096 and 8192, and it is the same list for the project resolution and for a per-node override. 8192 is the top of what the graphics API guarantees on every desktop adapter the app runs on.

iOS and Android stop at 4096. Evaluating an 8K graph runs a tablet or phone out of memory, so the dropdowns do not offer it there, and a project authored at 8192 on desktop is brought down to 4096 as it opens, before the engine ever holds the graph. Switching to a material that was authored higher clamps it too, with a toast: This material was authored above 4096 × 4096 and has been reduced to fit this device. A value above the cap that is already set on a node stays visible in the dropdown, so the field never misreports what the node is on.

What differs on iPad

Most of the application is identical everywhere. The exceptions are all on iPad:

Feature	Desktop	iPad
Node canvas, properties, export	Yes	Yes
Maximum resolution	8192	4096
Minimap / Node Map panel	Yes	Not drawn
In-app MCP server	Yes	Not available
Open in File Manager	Yes	Not available
Command palette	Yes	Needs a hardware keyboard or a game controller
Game controller input	Yes	Yes

Android shares the 4096 ceiling with iPad. The minimap is only withheld on iPadOS; it is drawn on Android.

iPad requires full screen

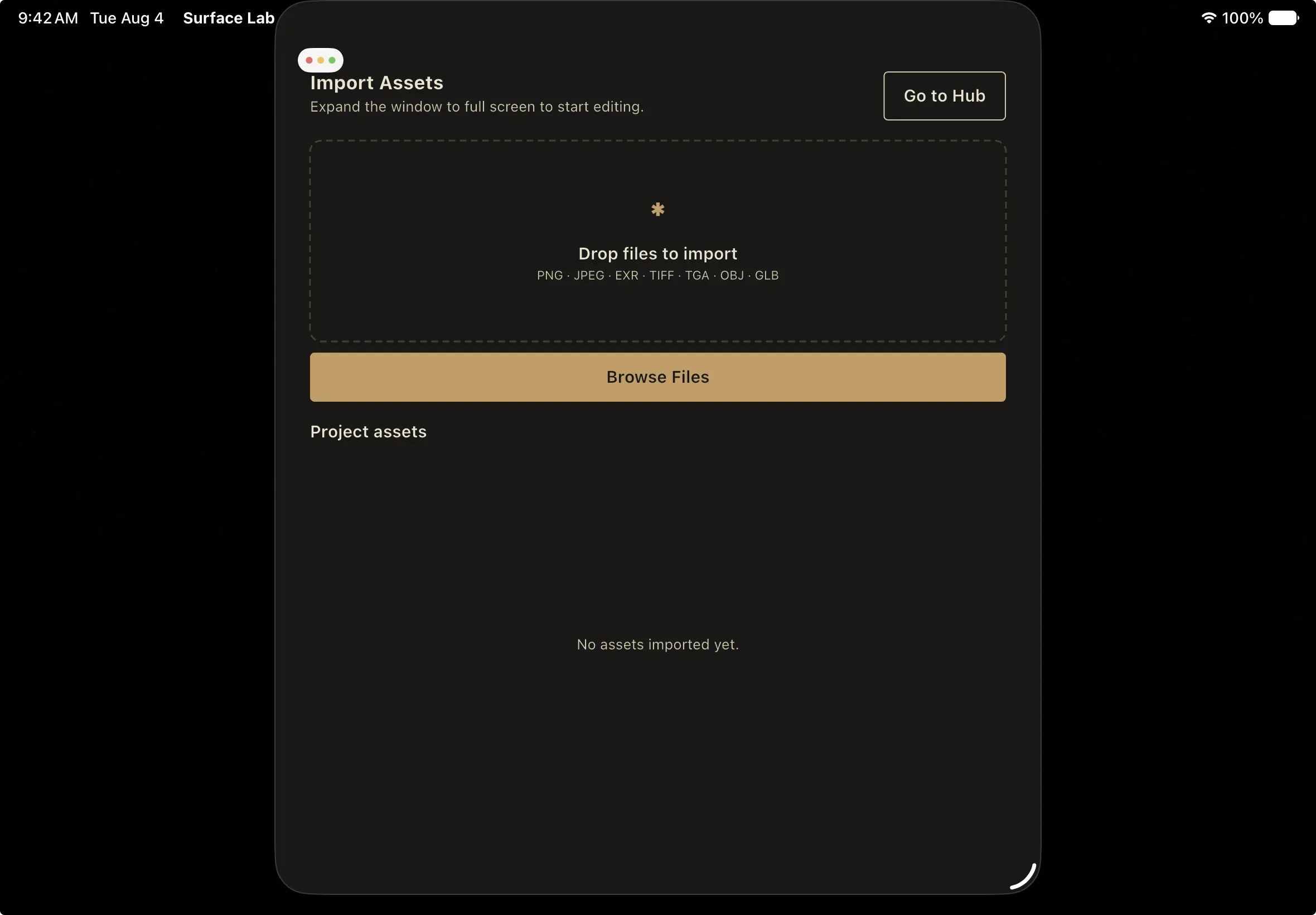

If the window is more than about 10 points smaller than the screen in either dimension, which happens in Split View, Slide Over, or when resizing under Stage Manager, the editor refuses to run. You get the asset-import screen and a toast reading Expand to full screen to start editing. Return the app to full screen and the editor comes back.

Where your projects live

New projects are created in a Surface Labs folder inside your Documents folder, made the first time it is needed.

Platform	Default location
Windows	%USERPROFILE%\Documents\Surface Labs\
macOS	~/Documents/Surface Labs/
Linux	Your XDG Documents directory, falling back to $HOME/Documents
iPadOS	The app’s own Documents container, browsable from the Files app

You are not confined to that folder. Open and Save reach anywhere the operating system allows.

Command-line tools

Two command-line programs use the same core, node library and export path as the application, so a headless run reproduces what the Export dialog would have written.

surface_lab_headless opens a project, evaluates it, writes its textures and exits, with no window and no Flutter engine. It is the piece you want in CI: a build step can re-export a committed .surfacelabs on every change with no GUI, no display and no human.

surface_lab_headless <project.surfacelabs> --out <dir>
    [--native-lib <path to surface_gpu>]
    [--format png|tga|tiff|bmp|exr]
    [--prefix <name>]
    [--material <index>|all]
    [--verbose]

Only --out is required. Format and prefix default to the project’s saved export preset, and --material defaults to the active material. Exit codes are 0 for at least one file written, 1 for a usage or project error, 2 for no render core, and 3 for nothing to export.

--format takes the same set the Export dialog offers. There is no JPEG, because lossy compression damages texture maps, so --format jpg is rejected. tif is accepted as a spelling of tiff.

surface_lab_mcp is the standalone MCP server, for driving a project from a script or an AI assistant without the application running. See Automation for what it exposes.

Not packaged yet

Neither program has a distributable build. The published packages carry the application only. Running either one means a Surface Labs source checkout and the Dart SDK:

dart run surface_lab_headless <project.surfacelabs> --out <dir>

Packaging them is planned but not scheduled.

Rendering happens on a native core, and headless runs split into two tiers depending on whether that core is present. Reading and editing graphs, validating, and planning an export all work without it, which means a CI box with no display is still useful. Actually rendering or exporting requires it, and fails loudly with gpu_unavailable rather than writing blank maps. Check project info for gpu_available before a render.
